Description

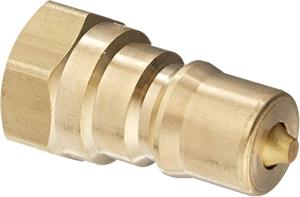

3/4 inch DQC H-Series ISO-B Poppet Valve Female Threaded Coupler
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel coupler sleeves are hardened to resist deformation and maximize service life.
- Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
- Meets dimensional requirements of ISO 7241 Series B
- Nitrile (Buna-N) seals are standard
- Poppet style shut-off valves
- Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series ‘HNV’, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
- Machined components are manufactured using solid bar stock
- Redundant o-ring sealing system with PTFE backup ring
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Tech Specs
| Body Size | 3/4″ |
|---|---|
| Burst Pressure | 16000 PSI (1100 bar) |
| End Connection | Female NPTF |
| Hex | 1-5/16″ |
| Length | 3.55″ (90.2mm) |
| Material | Steel |
| Maximum OD | 2.22″ (56.4mm) |
| Maximum Operating Pressure | 4000 PSI (275 bar) |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Thread Size | 3/4″-14 |
| Weight (lbs) | 1.310 |
