Description

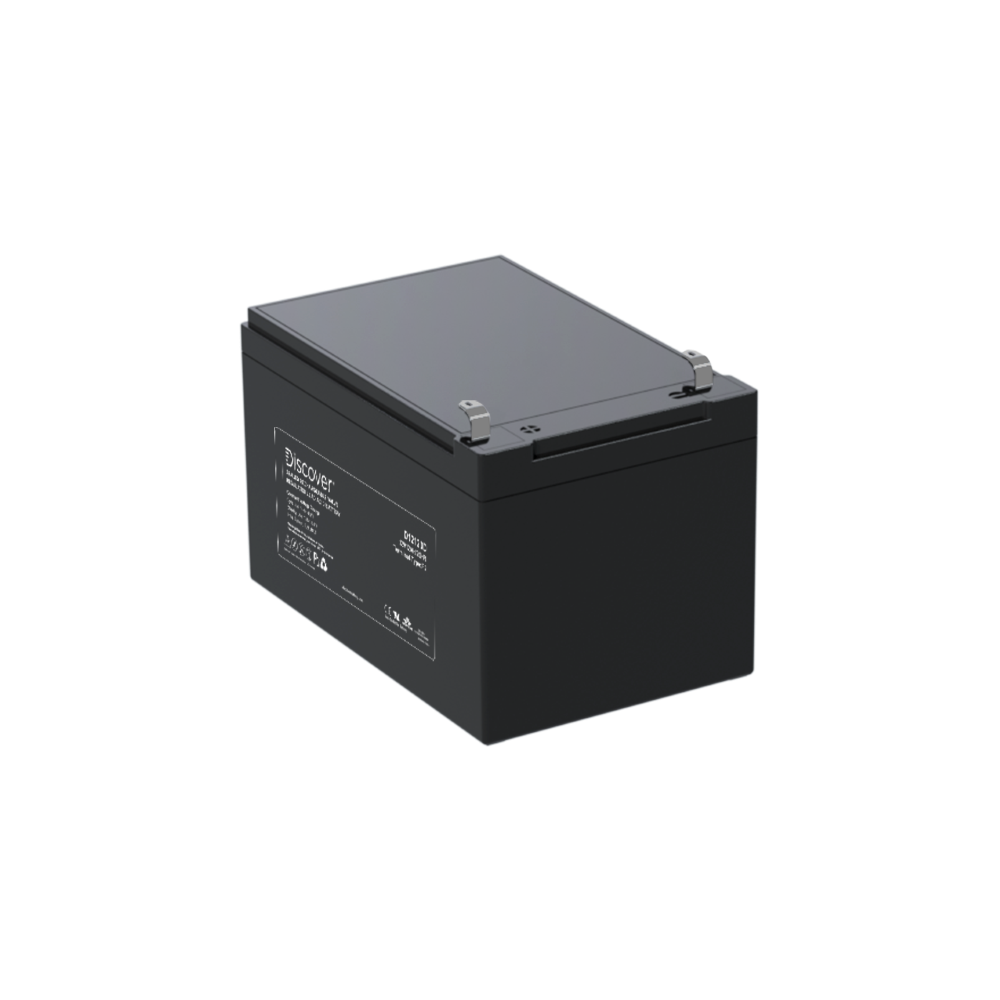

Discover D12120D 12V 12Ah VRLA AGM Deep Cycle Battery
MECHANICAL SPECIFICATIONS
| Industry Reference | ||
| Length A (in/mm) | 5.9 | 151 |
| Width B (in/mm) | 3.9 | 98 |
| Height C (in/mm) | 3.7 | 95 |
| Total Height D (in/mm) | 4 | 101 |
| Weight (lbs/kgs) | 8.1 | 3.7 |
| Terminal * | F2 | |
| Technology | AGM, VRLA | |
NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.
NOTE 2: Refer to terminal guide on website for torque values.
ELECTRICAL SPECIFICATIONS
| Voltage (V) | 12 | |
| Internal Resistance (mΩ) | 20 | |
| Short Circuit (A) (20°C / 68°F) | 600 | |
| Self-Discharge (20°C / 68°F) | 2-3% per month | |
| Charge Temperature | Min: -10°C (14°F) | Max: 50°C (122°F) | |
| Discharge Temperature | Min: -40°C (-40°F) | Max: 50°C (122°F) | |
| Storage Temperature | -20°C (-4°F) to 60°C (140°F) | |
NOTE 3: Extra considerations must be given when designing systems for use at maximum temperatures.
NOTE 4: Internal Resistance is approximate.
PERFORMANCE SPECIFICATIONS
| Amp Hours (AH) | |||
|---|---|---|---|
| 1 HR | 5 HR | 10 HR | 20 HR |
| 8 | 10 | 11 | 12 |
1HR @1.60VPC, 5HR @1.75VPC; 10 HR@ 1.80VPC; 20 HR @1.80VPC. All at 30°C/86°F
| Discharge Constant Current (Amperes) @ 25°C / 77°F | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VPC/Time | 5 MIN | 10 MIN | 15 MIN | 30 MIN | 1 HR | 3 HR | 5 HR | 10 HR | 20 HR |
| 1.60 VPC | 45.60 | 31.00 | 24.30 | 13.30 | 7.50 | 3.15 | 2.11 | 1.20 | 0.62 |
| 1.65 VPC | 44.20 | 30.10 | 23.80 | 12.90 | 7.43 | 3.12 | 2.09 | 1.19 | 0.62 |
| 1.70 VPC | 42.70 | 29.20 | 23.20 | 12.60 | 7.37 | 3.09 | 2.06 | 1.18 | 0.62 |
| 1.75 VPC | 41.30 | 28.30 | 22.70 | 12.30 | 7.30 | 3.06 | 2.04 | 1.16 | 0.61 |
| 1.80 VPC | 39.80 | 27.50 | 22.10 | 12.00 | 7.23 | 3.03 | 2.01 | 1.14 | 0.60 |
| Discharge Constant Power (Watts) @ 25°C / 77°F | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| VPC/Time | 5 MIN | 10 MIN | 15 MIN | 30 MIN | 1 HR | 3 HR | 5 HR | 10 HR | 20 HR |
| 1.60 VPC | 88.00 | 59.20 | 47.70 | 28.20 | 15.60 | 6.52 | 4.24 | ||
| 1.65 VPC | 82.50 | 55.70 | 45.10 | 26.80 | 14.90 | 6.36 | 4.17 | ||
| 1.70 VPC | 77.10 | 52.30 | 42.50 | 25.30 | 14.20 | 6.19 | 4.09 | ||
| 1.75 VPC | 71.70 | 48.80 | 39.80 | 23.90 | 13.50 | 6.00 | 4.00 | ||
| 1.80 VPC | 66.40 | 45.40 | 37.20 | 22.40 | 12.80 | 5.80 | 3.90 |
BENEFITS
ENHANCED RUNTIME
- High energy density
- Consistent voltage performance
EXTENDED SERVICE LIFE
- Low self-discharge rates prolongs shelf life
- 99% gas recombination extends life
- Long life superior to general purpose batteries
EXTREME TEMPERATURES
- Wide ambient operating temperature
- Low temperature operation superior to FLA / Gel batteries
RELIABLE AND SAFE
- Valve Regulated Lead-Acid, AGM
- Maintenance-free, nonspillable, no-gassing
- Flame retardant (UL94:V0) ABS case and cover available
CERTIFIED QUALITY
Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.
Designed in accordance with and published in compliance with applicable standards, including:
- IEC 60896-21/22
- BS EN 60254-1:2005
- UL, CE Health Safety Certified
SHIPPING CLASSIFICATION
- Classified as a nonspillable battery
- Without restriction for transport by Sea (IMDG amendment 27)
- Without restriction for transport by Air (IATA/ICAO provision 67)
- Without restriction for transport by Ground (STB, DOT-CFR-HMR49)
