Description
| Series | FS | Warranty | 1 Year |
|---|---|---|---|
| Volts | 6 | BCI | 902 |
| Cells | 3 | Plates/Cell | 19 |

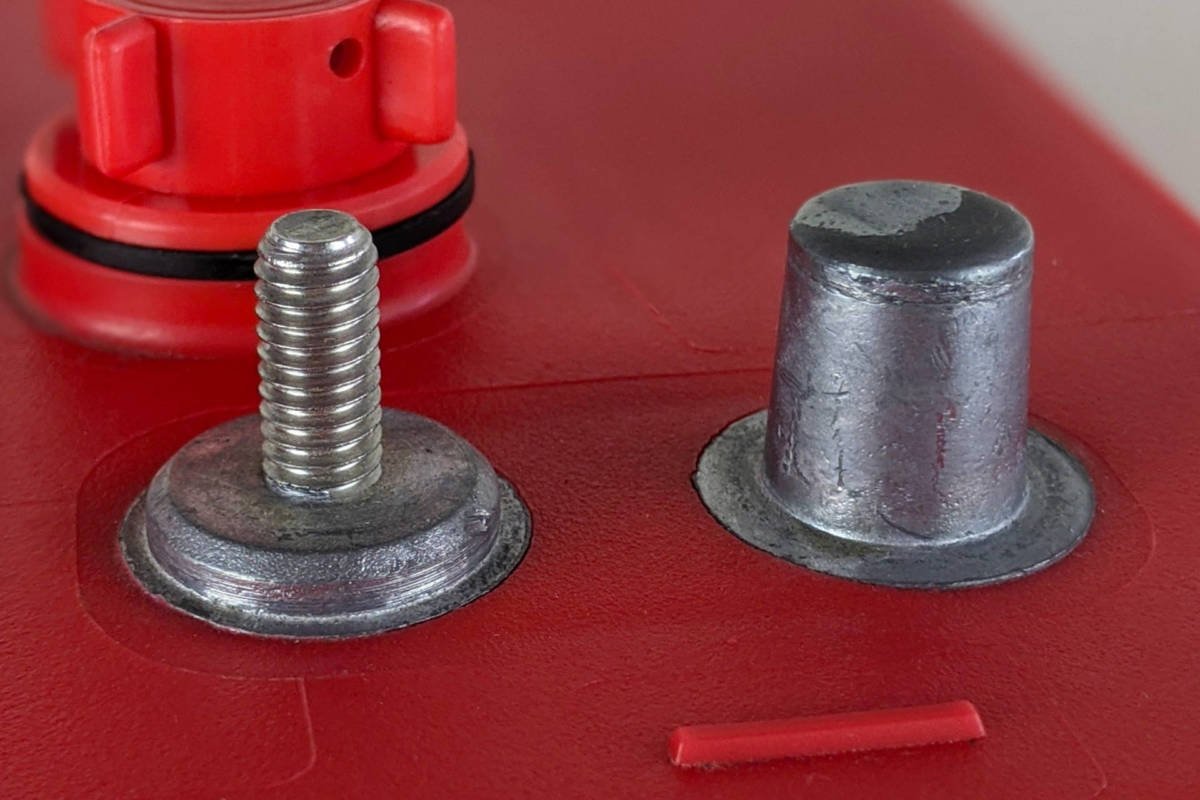

| Terminal Type | DT | ||
| Included Hardware | Stainless Steel K-Lock Nut | ||
| Size & Thread | 5/16″-18 | ||
| Charge | |
|---|---|
| Charge Voltage Range | 2.45-2.5 V/cell @ 25°C (77°F) |
| Float Voltage Range | 2.25 V/cell @ 25°C (77°F) |
| Recommended Charge Current | 45 A |
| Maximum Charge Current | 70 A |
| Self-Discharge Rate | 5%-10% per month at 25°C (77°F) |
| Capacity | |
|---|---|
| Cold Crank Amps (CCA) 0°F / -18°C | 987 |
| Marine Crank Amps (MCA) 32°F / 0°C | 1234 |
| Reserve Capacity (RC @ 25A) | 697 Minutes |
| Reserve Capacity (RC @ 75A) | 183 Minutes |
| Capacity Affect by Temperature | 40°C (104°F) |
25°C (77°F) |
0°C (32°F) |
-15°C (5°F) |
|---|---|---|---|---|
| 105% | 100% | 75% | 50% |
| Hour Rate | Capacity / AMP Hour | Current / AMPs |
|---|---|---|
| @ 100 Hour Rate | 461 AH | 4.61 A |
| @ 72 Hour Rate | 454 AH | 6.30 A |
| @ 50 Hour Rate | 428 AH | 8.57 A |
| @ 20 Hour Rate | 360 AH | 18.00 A |
| @ 15 Hour Rate | 342 AH | 22.80 A |
| @ 10 Hour Rate | 317 AH | 31.68 A |
| @ 8 Hour Rate | 310 AH | 38.70 A |
| @ 5 Hour Rate | 284 AH | 56.88 A |
| @ 1 Hour Rate | 144 AH | 144.00 A |
| Ampere hour capacity ratings based on specific gravity of 1.280 at 27°C (80°F). Reduce capacities 5% for specific gravity of 1.265 and 10% for 1.250. |
||
| Specifications | |||
|---|---|---|---|
 |
Weight | 46.5 kg | 103 lbs |
| Length | 31.1 cm | 12.25“ | |
| Width | 18.1 cm | 7.13“ | |
| Height Inc. Term. | 36.2 cm | 14.25“ | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Electrolyte Reserve | 44 mm | 1.75“ | |
|---|---|---|---|
| Container | Polypropylene | ||
| Cover | Polypropylene | ||
| Handles | Rope / Plastic Handle | ||
Cycle Life vs. Depth of Discharge
Voltage vs. Depth of Discharge
Detailed Illustration
