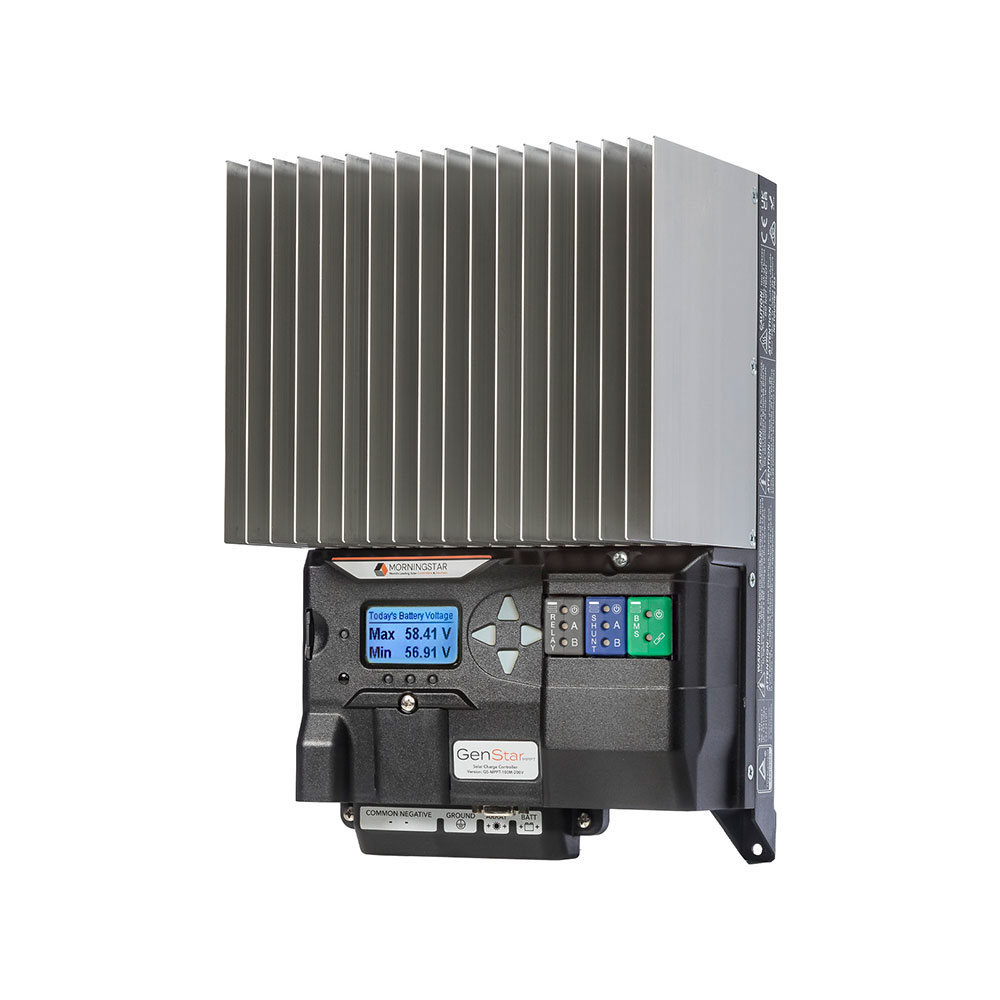

Morningstar GS-MPPT-100M-200V GenStar MPPT (12/24/36/48V) 8000W/200V (input), 100 amp (charging), 30 amp (load)

Morningstar GS-MPPT-100M-200V GenStar MPPT (12/24/36/48V) 8000W/200V (input), 100 amp (charging), 30 amp (load)

SKU: GS-MPPT-100M-200V

Original price was: $3,896.32.Current price is: $2,337.79.

Add to wishlistAdd to compare
Category:
Product information
Weight 18.5 lbs
Dimensions 16 × 10 × 4 in
Part No

GS-MPPT-100M-200V
Brand

Morningstar
Controller Type

MPPT (Maximum Power Point Tracking)
Supported Battery Chemistry

AGM, Custom User-Defined Battery Profiles, Flooded (Wet Cell), Gel, Lithium Iron Phosphate (LiFePO₄), Sealed Lead Acid (General)
System Voltage Compatibility

12V, 24V, 36V, 48V, Multi-Voltage
Solar Input Voltage

150V – 250V
Maximum Charging Current

100A+ (Commercial/Industrial)
Maximum PV Array Wattage

3000W+
Application

Commercial Solar, Industrial Systems, Telecommunications
Charging Technology & Features

Battery Temperature Sensor Compatibility, Data Logging, Equalization Mode, Load Control / Load Terminals, MPPT Tracking Efficiency (%), Multi-Stage Charging, Overcharge / Overload / Short Circuit Protection, Remote Monitoring Support, Reverse Polarity Protection, Temperature Compensation
Display & Interface

LCD Display, Remote Display Compatible
Build & Protection Rating

IP32
I/O Connection Styles

Screw Terminals
Portability

Fixed/Wall Mount
Warranty

5 Years

Description

The Morningstar GenStar GS-MPPT-100M-200V is a 100A MPPT charge controller capable of handling up to 8000W of solar input. It supports 12V, 24V, 36V, and 48V battery systems and offers advanced battery charging algorithms for optimal performance. With full remote monitoring capabilities and multiple load control options, this controller is ideal for large-scale off-grid or hybrid solar installations.

KEY FEATURES

• 100A MPPT charge controller.
• Supports up to 8000W of solar input.
• Full remote monitoring capabilities.
