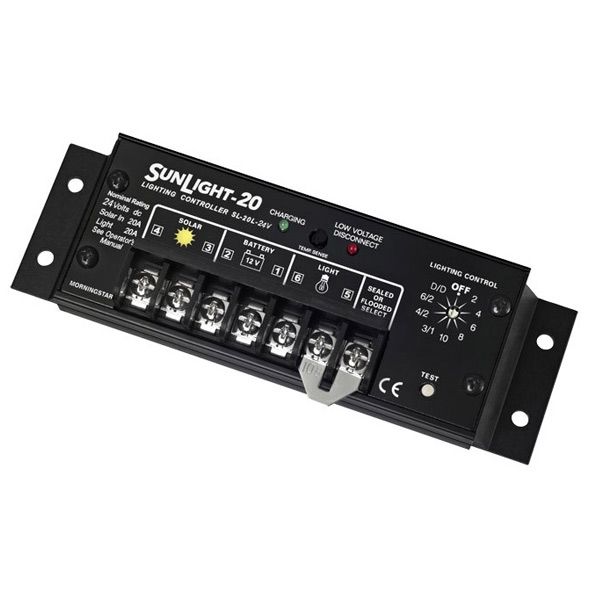

Morningstar SL-20L-24V Morningstar Sunlight Regulator/lighting Controller - 24V, 20A
Morningstar SL-20L-24V Morningstar Sunlight Regulator/lighting Controller - 24V, 20A - Image 2
Morningstar SL-20L-24V Morningstar Sunlight Regulator/lighting Controller - 24V, 20A - Image 3

Morningstar SL-20L-24V Morningstar Sunlight Regulator/lighting Controller – 24V, 20A

SKU: SL-20L-24V

Original price was: $411.02.Current price is: $246.61.

Add to wishlistAdd to compare
Category:
Product information
Weight 6.5 lbs
Dimensions 8 × 6 × 3 in
Part No

SL-20L-24V
Brand

Morningstar
Controller Type

PWM (Pulse Width Modulation)
Supported Battery Chemistry

AGM, Flooded (Wet Cell), Gel, Sealed Lead Acid (General)
System Voltage Compatibility

24V
Solar Input Voltage

50V – 100V
Maximum Charging Current

11A – 20A
Maximum PV Array Wattage

300W – 600W
Application

Security & Remote Monitoring Stations, Street Lighting
Charging Technology & Features

Lighting Control Modes (Dusk/Dawn/Timer), Load Control / Load Terminals, Multi-Stage Charging, Overcharge / Overload / Short Circuit Protection, Reverse Polarity Protection, Temperature Compensation
Display & Interface

LED Indicator
Build & Protection Rating

IP65, Weatherproof / Outdoor Rated
I/O Connection Styles

Screw Terminals
Portability

Fixed/Wall Mount
Warranty

5 Years

Description

The SunLight is a combination solar charge controller and lighting activation switch. They mate with the HES LED fixtures, and turn them on at dusk. A wide range of settings allows the light to run for a preset number of hours, all the way until dawn, or for a set number of hours after and before sunset. The light control also has a Low Voltage Disconnect to protect the batteries from complete discharge. The load rating and the solar rating are the same: 10 or 20 amp models available.

Specification

SKU SL-20L-24V
Brands Morningstar
Volts 24V
Amps 20A
Options No
Clearance No
Manual Data Sheet
