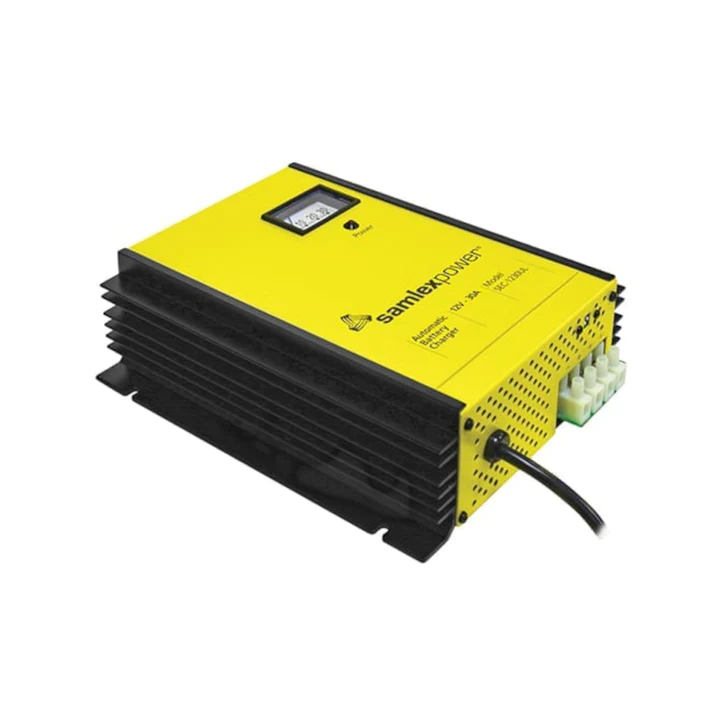

Description
| INPUT & OUTPUT | PHYSICAL SPECIFICATIONS | ||
| Nominal Input Voltage & Frequency | 120 VAC, 50 / 60 Hz (Default) ; 230 VAC, 50 / 60Hz (Internal jumper setting) | LED Display | RED LED: Output is available |
| AC Input Current | (i) At 120 VAC: 6.5A, (ii) At 230 VAC: 3.5A | Analogue Meter | Ammeter: 0 to 15A |
| AC Input Connection | Attached Power Cord: 6 ft length ; 3 x 18AWG wire size ; NEMA5-15P Plug | Type of Cooling | Temperature controlled fan: • On when power transformer temperature rises to 60°C / 140°F • Off when cools down to 50°C / 122°F |
| Charging Current | 30A | L x W x H | 280 x 214 x 83 mm / 11.0 x 8.4 x 3.3 in |
| Charging Stages | 3 Stages (DIP Switch setting – Default): Bulk, Absorption and Float 2 Stages (DIP Switch setting): Bulk and Float |
Weight | 6.4lb / 2.9kg |
| Charging Voltages | Absorption: 14.4 VDC (Default) ; 14.0 VDC (DIP Switch setting) ; Disable (DIP Switch setting) Float: 13.5 VDC |
||
| No. of Charging Banks | 3 | ||
| Output Connections | Tubular Hole with Set Screw ; Hole Diameter: 4.8 mm / 0.19 in |
| FUSES | PROTECTION | ||
| Internal AC Input Side Fuse (120vac) | 8A, 250V; Size 6.3mm x 32mm; Time Delay Type Mfr.: Littelfuse 0313008 or equivalent |
Output Short Circuit | No output voltage, Auto reset on removal or short |
| Internal AC Input Side Fuse (230vac) | 4A, 250V; Size 6.3mm x 32mm; Time Delay Type Mfr.: Littelfuse 0313004 or equivalent |
Input Overload | 8A input side fuse will blow (120 VAC input) |
| Internal DC Output Side Fuse | 2 x (32V, 20A); Automotive Blade Type; Fast Acting Mfr.: Littelfuse 0287020 or equivalent |
Output Overload | Electronic current limit at 30A |
| Reverse Polarity on Output Side | 2 x 20A output side fuse will blow |
| ENVIRONEMNT | COMPLIANCE | ||
| Operating Temperature Range | -20°C to +40°C / -4°F to +104 | Safety | Conforms to UL STD. 1564 |
| Storage Temperature | -30°C to +70°C / -22°F to +158°F | Certified to CSA STD. C22.2 No. 107.2 | |
| Relative Humidity | Up to 90%, non condensing | Emi | FCC Part 15(B), Class B |
| Operating Condition | Indoor, Ventilated, Cool and Dust Free |
