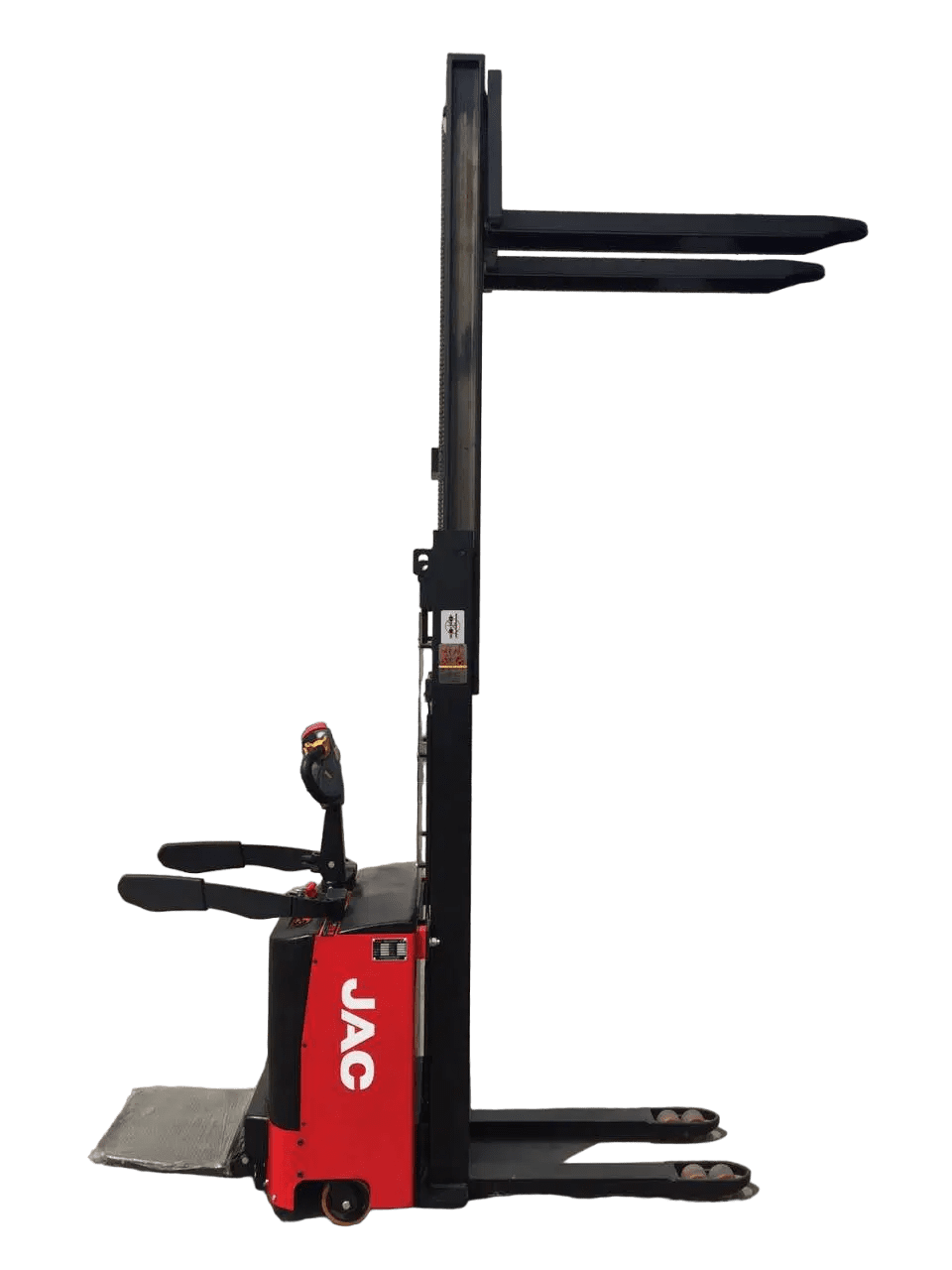

Description
Technical Parameters:
| Characteristics | 1.1 | Manufacturer | Unit | JAC | |||||||
| 1.2 | Model | CDD15 | |||||||||
| 1.3 | Power unit | electric | |||||||||
| 1.4 | Operation | Stand-on | |||||||||
| 1.5 | Rated traction weight | kg | 1500 | ||||||||
| 1.6 | Load center distance | mm | 600 | ||||||||
| Weights | 2.1 | Service Weight | 820 | 830 | 900 | 930 | 950 | 970 | 980 | 1000 | |
| Wheels/Tyres | 3.1 | Tires | PU | ||||||||
| 3.2 | Driving wheel size/number | Φ×w(mm) | Φ250*80/1 | ||||||||
| 3.3 | Balance wheel size, number | Φ×w(mm) | Φ150*58/2 | ||||||||
| 3.4 | Front wheel size/number | Φ×w(mm) | Φ80*70/4 | ||||||||
| Dimensions | 4.1 | The max. lifting height | mm | 1600 | 1800 | 2000 | 2600 | 3000 | 3200 | 3600 | 4000 |
| 4.2 | Load capacity on Max. height | mm | 1200 | 1200 | 1200 | 950 | 900 | 850 | 750 | 600 | |
| 4.3 | Extended mast height | mm | 2077 | 2277 | 2537 | 3137 | 3497 | 3687 | 4087 | 4487 | |
| 4.4 | Lowered mast height | mm | 2077 | 2277 | 1577 | 1877 | 2027 | 2127 | 2327 | 2527 | |
| 4.5 | Lowered fork height | mm | 86 | ||||||||
| 4.6 | Overalllength(with Pedal) | mm | 1914(2314) | ||||||||
| 4.7 | Overall width | mm | 808 | ||||||||
| 4.8 | Fork length | mm | 1150 | ||||||||
| 4.9 | Single fork width | mm | 180 | ||||||||
| 4.10 | Overall fork width | mm | 570/695 | ||||||||
| 4.11 | Fixed leg length | mm | 875 | ||||||||
| 4.12 | Single fixed leg width | mm | 124 | ||||||||
| 4.13 | Inside width between fixed legs | mm | 266/391 | ||||||||
| 4.14 | Outside width between fixed legs | mm | 514/639 | ||||||||
| 4.15 | Aisle width for pallets 1000×1200 cross ways | mm | 2232 | ||||||||
| 4.16 | Aisle width for pallets 800×1200 length ways | mm | 2302 | ||||||||
| 4.17 | Turning radius | mm | 1460 | ||||||||
| Performance | 5.1 | Travel speed,laden/unladen | km/h | 5.5/5.2 | |||||||
| 5.2 | Lifting speed, with/without load | mm/s | 135/100 | ||||||||
| 5.3 | Lowering speed, with/without load | mm/s | 128/146 | ||||||||
| 5.4 | Service brake | electromagnetic braking | |||||||||
| Drive/Battery | 6.1 | Drive motor, 60 minute rating | kW | 1.5 | |||||||
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | ||||||||
| 6.3 | Battery voltage | V/Ah | 24V/210AH | ||||||||
