Description

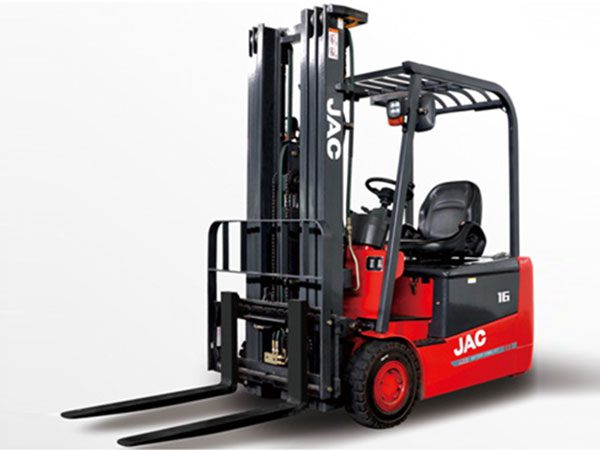

Electric Forklift 1600kgs loading capacity,Curtis controller,battery 48V/500Ah and charger,3m duplex mast,sideshifter,solid tyres,caution light,LED front and rear lamps,suspension seat,fork length 1220mm,English nameplate – big 3-wheel battery forklift
Technical Parameters of the 3-Wheel Battery Forklift
| Model | CPD16SA3 | CPD18SA3 | CPD20SA3 | |||
| Rated load | kg | 1600 | 1800 | 2000 | ||
| Load center distance | mm | 500 | 500 | 500 | ||
| Lift height | mm | 3000 | 3000 | 3000 | ||
| Free lift height | mm | 150 | 150 | 150 | ||
| Fork size | L×W×T | mm | 1070×100×40 | 1070×122×40 | ||
| Mast tilt angle | FR/RR | 。 | 6.5/6.5 | 6.5/6.5 | 6.5/6.5 | |
| Minimum turning radius | mm | 1550 | 1550 | 1680 | ||
| Minimum right angle stacking aisle width | mm | 3070 | 3070 | 3220 | ||
| Minimum ground clearance | mm | 102 | 102 | 100 | ||
| Height of overhead guard | mm | 1960 | 1960 | 2020 | ||
| Performance | Maximum travel speed | Full load | km/h | 14 | 14 | 13 |
| Maximum lift speed | Full load | mm/s | 260 | 260 | 200 | |
| Maximum gradeability | % | 15 | 15 | 15 | ||
| Dimensions | Overall length | Without forks | mm | 1930 | 1930 | 2080 |
| Overall width | mm | 1066 | 1066 | 1156 | ||
| Self weight | Without load | kg | 3200 | 3260 | 3550 | |
