Description
Specification Details
| Parts per Unit |
5, 50 |
|---|---|
| Features |

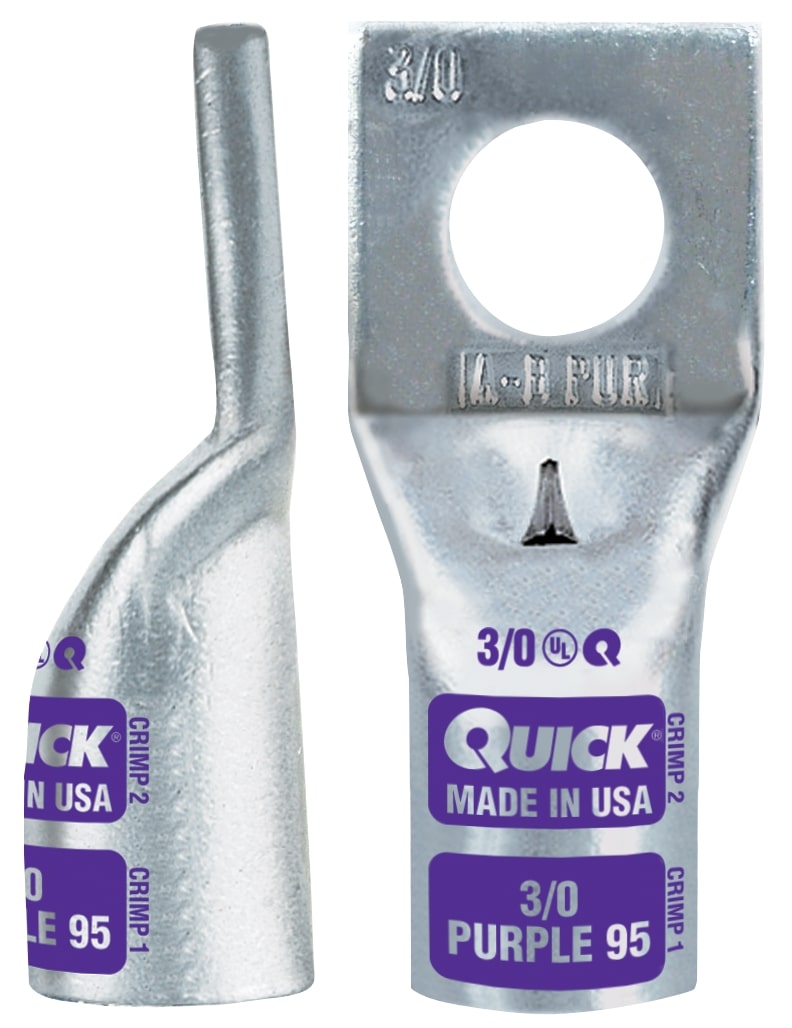

Heavy wall copper lugs are 80% thicker than standard lugs, Heavy Wall Copper Tube Lugs, Ideal for industrial applications, lift trucks and terminals blocks, Made in USA, Made of 100% copper, tin-plated for added conductivity and to resist corrosion, Sight hole for cable inspection and “weep hole” for solder dipping, Wider and thicker pads for greater strength and conductivity |
| Application |
telecom, UPS, utilities and electric generators |
| Gauge |
3/0 |
| Pack Type |
Bag |
| Plating Material |
Tin |
| SAE |
J163, J1811 |
| Stud Hole Size |
3/8 in |
| Subject to Prop 65 |
No |
| Termination Material |
Copper |
| Termination Method |
Crimp |
| UL / CSA |
Yes |
| Works With |
Side Posts |
| Brand |
MagnaLug |
| Color |
Silver |
| Product Length |
2.40 in |
| Product Width |
1.05 in |
| Product Type |
IND Sight Hole Lug |
| Production Process |
Formed |
| RoHS Compliant |
Yes |
| SKU |
8930-005F, 8930-050F, 8930F |
| Product Height |
0.73 in |
| Product Weight |
0.15 lb |
| Tristrip Statement |
Strip .98″ (25mm) minimum of insulation from ind, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish |
Remueva por lo menos 25 mm (0.98 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement |
QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin |
USA |
