Description
120×90, -20℃~400℃, 50º*38º, 25Hz; For Android

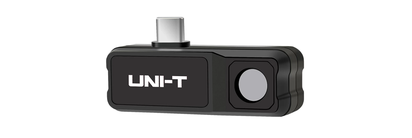

Product Specifications of UTi120M
Technical Data
IR resolution (Pixels) 120×90
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK @25℃
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range -20℃ ~ 400℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes Thermal,Fusion,PIP
On screen analyzer 6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm √
Video recording √
General Characteristics
USB Type-C
Drop proof 2m
Image/Video storage format JPEG, MP4
Certificates CE,UKCA,FCC,RoHS
Product net weight 25g
Product size 53mm×18.2mm×18.5mm
Packing Details
Standard accessories Micro USB adapter, USB cable, English manual, Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 20pcs
Standard carton size 290mm×265mm×325mm
Standard carton G.W. 4.8kg
