Description
FEATURES

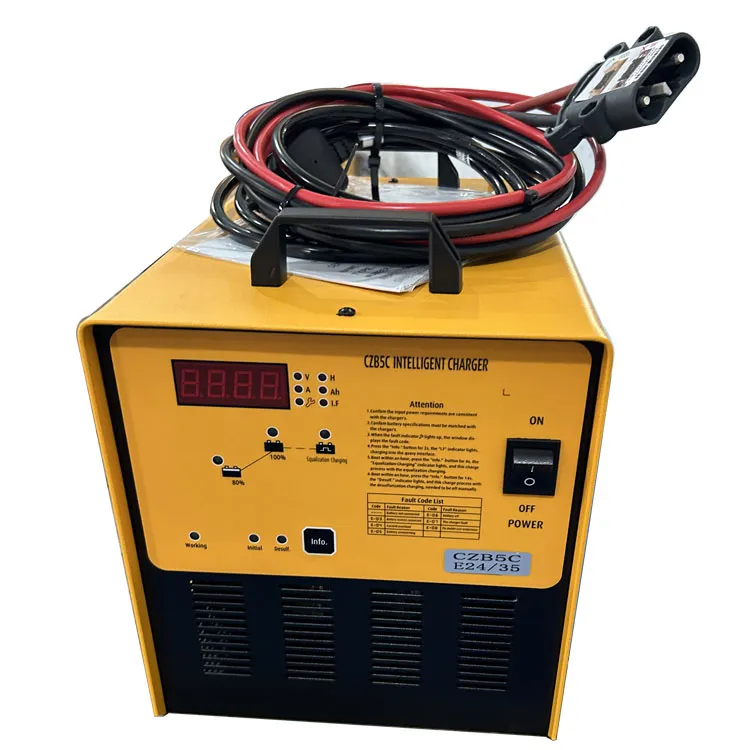

SZB5C series Intelligent Charger:
This device would be applicable to recharge of lead-acid batteries which could be used in various electric vehicle such as power pallet trucks,fork-lift truck,lift truck,electronic tour bus.
Technical Feature:
● The voltage and current double closed-loop framework is applied in the PID control technology. This device can achieve dynamic tracking and automatic adjustment of charge parameters.
● Nixie tube would display charger parameters such as battery voltage, charge current,capacity and recharged time.It could also show the code of charging curve and fault. High-intensity LED Lamp would indicate running state of this charging unit.
● Functions of automatic detection,delaying and soft-start; Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
● This device could also record data at the end of recharge for 30 times.
● Protection and alarm functions of open circuit,reverse connection,over load and short circuit breakdown.
● Protection and alarm functions of overheat fault of transformer and module.
● Equalization charge could ensure capacity consistency of battery packs;Function of automatic initial charge;Function of desulfuration Charge;
SZB5C series Intelligent Charger:
This device would be applicable to recharge of lead-acid batteries which could be used in various electric vehicle such as power pallet trucks,fork-lift truck,lift truck,electronic tour bus.
Technical Feature:
● The voltage and current double closed-loop framework is applied in the PID control technology. This device can achieve dynamic tracking and automatic adjustment of charge parameters.
● Nixie tube would display charger parameters such as battery voltage, charge current,capacity and recharged time.It could also show the code of charging curve and fault. High-intensity LED Lamp would indicate running state of this charging unit.
● Functions of automatic detection,delaying and soft-start; Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
● This device could also record data at the end of recharge for 30 times.
● Protection and alarm functions of open circuit,reverse connection,over load and short circuit breakdown.
● Protection and alarm functions of overheat fault of transformer and module.
● Equalization charge could ensure capacity consistency of battery packs;Function of automatic initial charge;Function of desulfuration Charge;
Main technical parameters
| Type (VIA) | Main Power (V) | Input Power (kVA) | Input Current (A) | Output Current (A) | Battery parameters | Size (mm*mm*mm) | Weight (kg) | ||||||
| V | Ah(8.5h-11h) | ||||||||||||
| SZB5C-E24/20 | Single-phase 220 (two-phase 380 can be customized) | 0.75 | 3.4 | 20 | 24 | 115-160 | 240×350×260 | 21.0 | |||||
| SZB5C-E24/50 | 1.9 | 8.5 | 50 | 24 | 290-400 | 240×350×260 | 25.5 | ||||||
| SZB5C-E24/80 | 3.0 | 13.6 | 80 | 24 | 464-640 | 466×361×785 | 40.0 | ||||||
| SZB5C-E36/30 | 1.7 | 7.7 | 30 | 36 | 175-240 | 240×350×260 | 23.5 | ||||||
| SZB5C-E36/40 | 2.3 | 10.2 | 40 | 36 | 230-320 | 240×350×260 | 24.5 | ||||||
| SZB5C-E48/25 | 1.9 | 8.5 | 25 | 48 | 145-200 | 240×350×260 | 24.5 | ||||||
| SZB5C-E48/45 | 3.4 | 15.3 | 45 | 48 | 260-360 | 466×361×785 | 42 | ||||||
| SZB5C-E48/65 | 4.9 | 22.2 | 65 | 48 | 375-520 | 466×361×785 | 50 | ||||||
| SZB5C-E48/80 | 6.0 | 27.3 | 80 | 48 | 465-640 | 466×361×785 | 56 | ||||||
| SZB5C-E72/30 | 3.4 | 15.3 | 30 | 72 | 175-240 | 280×430×310 | 35.5 | ||||||
| SZB5C-D48/55 | 380 | 4.1 | 6.3 | 55 | 48 | 320-440 | 466×361×785 | 62 | |||||
| SZB5C-D48/65 | 4.9 | 7.4 | 65 | 48 | 375-520 | 466×361×785 | 65 | ||||||
| SZB5C-D48/80 | 6.0 | 9.1 | 80 | 48 | 465-640 | 466×361×785 | 68 | ||||||
| SZB5C-D48/100 | 7.5 | 11.4 | 100 | 48 | 580-800 | 526×360×882 | 86 | ||||||
| SZB5C-D48/120 | 9.0 | 13.7 | 120 | 48 | 700-960 | 526×360×882 | 95 | ||||||
| SZB5C-D80/65 | 8.1 | 12.3 | 65 | 80 | 375-520 | 526×360×882 | 87 | ||||||
| SZB5C-D80/70 | 8.8 | 13.3 | 70 | 80 | 405-560 | 526×360×882 | 87 | ||||||
| SZB5C-D80/80 | 10.0 | 15.2 | 80 | 80 | 465-640 | 526×360×882 | 89 | ||||||
| SZB5C-D80/100 | 12.5 | 19.0 | 100 | 80 | 580-800 | 526×360×882 | 95 | ||||||
| SZB5C-D80/120 | 15.0 | 22.8 | 120 | 80 | 700-960 | 526×360×882 | 107 | ||||||
Main technical parameters
| Type (VIA) | Main Power (V) | Input Power (kVA) | Input Current (A) | Output Current (A) | Battery parameters | Size (mm*mm*mm) | Weight (kg) | ||||||
| V | Ah(8.5h-11h) | ||||||||||||
| SZB5C-E24/20 | Single-phase 220 (two-phase 380 can be customized) | 0.75 | 3.4 | 20 | 24 | 115-160 | 240×350×260 | 21.0 | |||||
| SZB5C-E24/50 | 1.9 | 8.5 | 50 | 24 | 290-400 | 240×350×260 | 25.5 | ||||||
| SZB5C-E24/80 | 3.0 | 13.6 | 80 | 24 | 464-640 | 466×361×785 | 40.0 | ||||||
| SZB5C-E36/30 | 1.7 | 7.7 | 30 | 36 | 175-240 | 240×350×260 | 23.5 | ||||||
| SZB5C-E36/40 | 2.3 | 10.2 | 40 | 36 | 230-320 | 240×350×260 | 24.5 | ||||||
| SZB5C-E48/25 | 1.9 | 8.5 | 25 | 48 | 145-200 | 240×350×260 | 24.5 | ||||||
| SZB5C-E48/45 | 3.4 | 15.3 | 45 | 48 | 260-360 | 466×361×785 | 42 | ||||||
| SZB5C-E48/65 | 4.9 | 22.2 | 65 | 48 | 375-520 | 466×361×785 | 50 | ||||||
| SZB5C-E48/80 | 6.0 | 27.3 | 80 | 48 | 465-640 | 466×361×785 | 56 | ||||||
| SZB5C-E72/30 | 3.4 | 15.3 | 30 | 72 | 175-240 | 280×430×310 | 35.5 | ||||||
| SZB5C-D48/55 | 380 | 4.1 | 6.3 | 55 | 48 | 320-440 | 466×361×785 | 62 | |||||
| SZB5C-D48/65 | 4.9 | 7.4 | 65 | 48 | 375-520 | 466×361×785 | 65 | ||||||
| SZB5C-D48/80 | 6.0 | 9.1 | 80 | 48 | 465-640 | 466×361×785 | 68 | ||||||
| SZB5C-D48/100 | 7.5 | 11.4 | 100 | 48 | 580-800 | 526×360×882 | 86 | ||||||
| SZB5C-D48/120 | 9.0 | 13.7 | 120 | 48 | 700-960 | 526×360×882 | 95 | ||||||
| SZB5C-D80/65 | 8.1 | 12.3 | 65 | 80 | 375-520 | 526×360×882 | 87 | ||||||
| SZB5C-D80/70 | 8.8 | 13.3 | 70 | 80 | 405-560 | 526×360×882 | 87 | ||||||
| SZB5C-D80/80 | 10.0 | 15.2 | 80 | 80 | 465-640 | 526×360×882 | 89 | ||||||
| SZB5C-D80/100 | 12.5 | 19.0 | 100 | 80 | 580-800 | 526×360×882 | 95 | ||||||
| SZB5C-D80/120 | 15.0 | 22.8 | 120 | 80 | 700-960 | 526×360×882 | 107 | ||||||
