Description
Safe and Reliable
l 53-fold electrical protections
l Stainless steel cabinet
l Smart charging
Easy Maintenance
l Unique module pre-installation design
l Automatic inspection platform
l Remote diagnostics and OTA upgrade
Exceptional User Experience
l Low noise design, ≤60dB
l Support APP, NFC, credit card, PNC
l User-friendly cable retraction system
Future Proof
l Support parallel design to meet future high-power charging needs
l CCS 1, CCS 2, CHAdeMO, GB/T
l Built-in 10+ languages
|
Category |
Item |

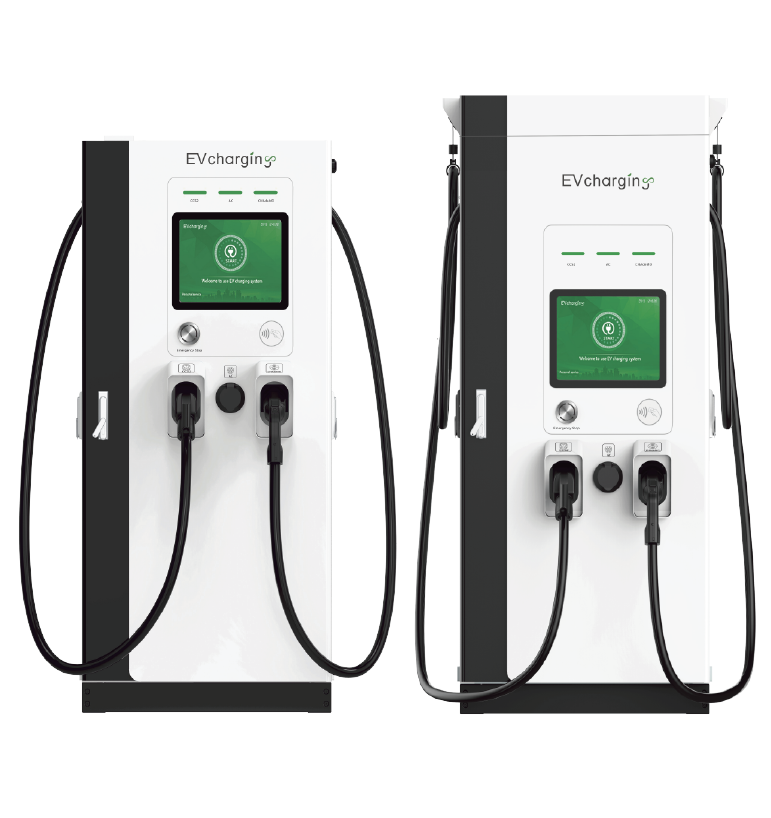

Atlas D80/120/160-EU |
Atlas D80/120/160-UL |
|
Input |
Voltage |
400Vac±10% |
480Vac±10% |
|
Current |
180A/250A/320A |
117A/174A/231A |
|
|
Frequency |
50/60Hz±10% |
||
|
AC wiring |
3P+N+PE |
||
|
Output |
Voltage |
200VDC~1000VDC |
|
|
Max current |
200A, 500A(optional) |
||
|
Power |
80kW/120kW/160kW (320kW, two units of160kw in parallel mode with 500A liquid cooling cable, extra accessory needed) |
||
|
One outlet |
CCS 2 |
CCS 1 |
|
|
Two outlets |
CCS 2+CHAdeMO or GBT |
CCS 1+CHAdeMO or GBT |
|
|
Three outlets |
CCS 2+CHAdeMO or GBT +Type-2 (22 kW) socket (optional) |
CCS 1+CHAdeMO or GBT +Type-1 (22 kW) socket (optional) |
|
|
Screen &Communication |
HDMI |
15″ high brightness full color touchscreen display |
|
|
Network |
Ethernet, Wi-Fi, SIM (4G) |
||
|
Protocol |
OCPP 1.6J, OCPP 2.0J ready |
||
|
Protection
|
Electrical |
Protection against short circuit, overvoltage, undervoltage, over temperature, integrated surge protection, lightning; Detection of grounding, insulation, phase deficiency; RCD: AC outlet-30mA AC+6mA DC; DC outlet-Type A |
|
|
Hardware |
Emergency stop button |
||
|
Rating |
IP54, IK10 (screen IK08) |
||
|
Certifications &Standards |
Certification |
CE, UKCA, RoHS |
UL, ENERGY STAR |
|
Standards |
IEC 61851-1, IEC 61851-23, IEC 61851-21-2, RoHS |
UL 2202, UL 2231-1, UL 2231-2 |
|
