Description
Input & Output ports : Type A; Data/charging protocol: 2.0/3.0; Voltage range: 4~24VDC; Current range : Type-A; 0.05~3ADC; Capacity: 0~99999mAh; Energy: 0~1000Wh; Circuit equivalent resistance measurement: 1~480Ω;

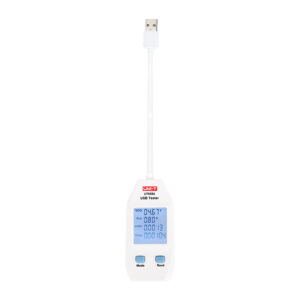

Specifications of UT658 Series USB Testers
Specifications Description UT658A UT658C UT658DUAL UT658LOAD
Input & Output ports (Type A) √ √ √
Input & Output ports (Type C) √ √
Data/charging protocol 2.0/3.0 2.0/4.0 2.0/(3.0/4.0) 2.0/3.0
Voltage range 4~24VDC, resolution: 0.01V √ √ √ √
Current range (Type-A) 0.05~3ADC, resolution: 0.01A √ √ √
Current range (Type-C) 0.05~5ADC, resolution: 0.01A √ √
Capacity 0~99999mAh, resolution: 1mAh √ √ √ √
Energy 0~1000Wh √ √ √ √
Circuit equivalent resistance measurement 1~480Ω √ √ √ √
USB data cable voltage (D+, D-) 0~3.3V √ √ √ √
Data storage 10 sets √ √ √ √
Electrical load (UT658LOAD only) 0.5A, 1A, 2A, 3A (Max power: 60W) √
Maximum recording time 99h, 59min, 59sec; resolution: 1s √ √ √ √
Fast charge protocol (Type-A) QC 3.0 fast charge protocol √ √ √
Fast charge protocol (Type-C) QC 4.0 fast charge protocol √ √
General Characteristics
Product color White
Product net weight UT658A/C: 50.6g; UT658DUAL: 65.8g; UT658LOAD: 114.4g
Product size UT658A/C: 93mm x 45mm x 13mm; UT658DUAL: 93mm x 55mm x 13mm;UT658LOAD: 122mm x 53mm x 27mm
Standard individual packing Gift box, English manual
Standard quantity per carton 60pcs
Standard carton measurement UT658A/C/DUAL: 280mm x 220mm x 225mm; UT658LOAD: 320mm x 300mm x 225mm
Standard carton gross weight UT658A/C: 4kg; UT658DUAL: 5.5kg; UT658LOAD: 9kg
