Description
DC/AC voltage: 1000V/750V; DC/AC current: 20A; Resistance: 60MΩ; Capacitance: 100mF; Frequency: 10MHz;

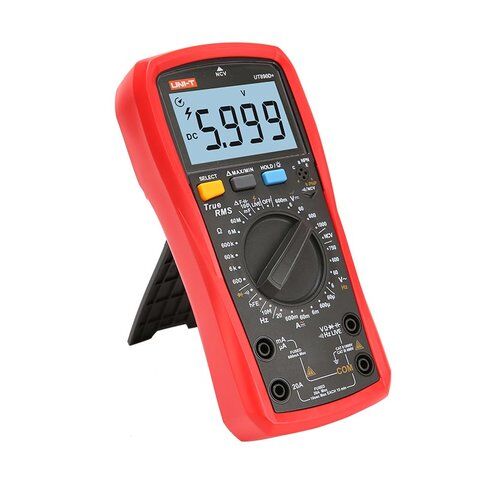

Specifications of UT890 Series True RMS Digital Multimeters
Specification Range UT890C UT890D+
DC Voltage 600mV/6V/60V/600V/1000V ±(0.5%+2) ±(0.5%+2)
AC Voltage 6V/60V/600V/750V ±(0.8%+3) ±(0.8%+3)
ACV Frequency 10Hz～10kHz ±（0.1%+5) ±（0.1%+5)
DC Current 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8) ±(0.8%+8)
AC Current 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12) ±(1%+12)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3) ±(0.8%+3)
Capacitor 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/
600.0μF/6.000mF/60.00mF/100.0mF ±(3%+10) ±(3%+10)
Frequency 9.999Hz～9.999MHz ±(1.0%+5) ±(1.0%+5)
Temperatue –40℃～1000℃/–40°F～1832°F ±(1.5%+5)
Fetures
Display Count 6000 6000
Manual Range √ √
NCV √ √
hFE √ √
Diode Test √ √
Continuity Test √ √
Live √
True RMS √ √
Fuse blowing alarm √ √
Acousto-optic indication(NCV/continuity) √ √
High voltage false detection 1000Vrms √ √
Current (AC/DC) mode memory √ √
Over-current alarm ≥20A √ √
Low Battery Indication ≤2.5V √ √
Data Hold √ √
REL √ √
Max/Min V 、A √ √
Auto Power Off 15Min √ √
Back light 30s √ √
Operation Temperature 0℃～40℃
Safety CAT II 1000V/CAT III 600V
General Characteristics
Power 1.5V x 2
Product color Red and Gray
Product Net Weight 346g
Product Size 183mm x 88mm x 56mm
Standard Individual Packing Gift Box, Manual
Standard Quantity Per Carton 40pcs
Standard carton measurement 690mm x 450mm x 340mm
Standard carton gross weight 23Kg
