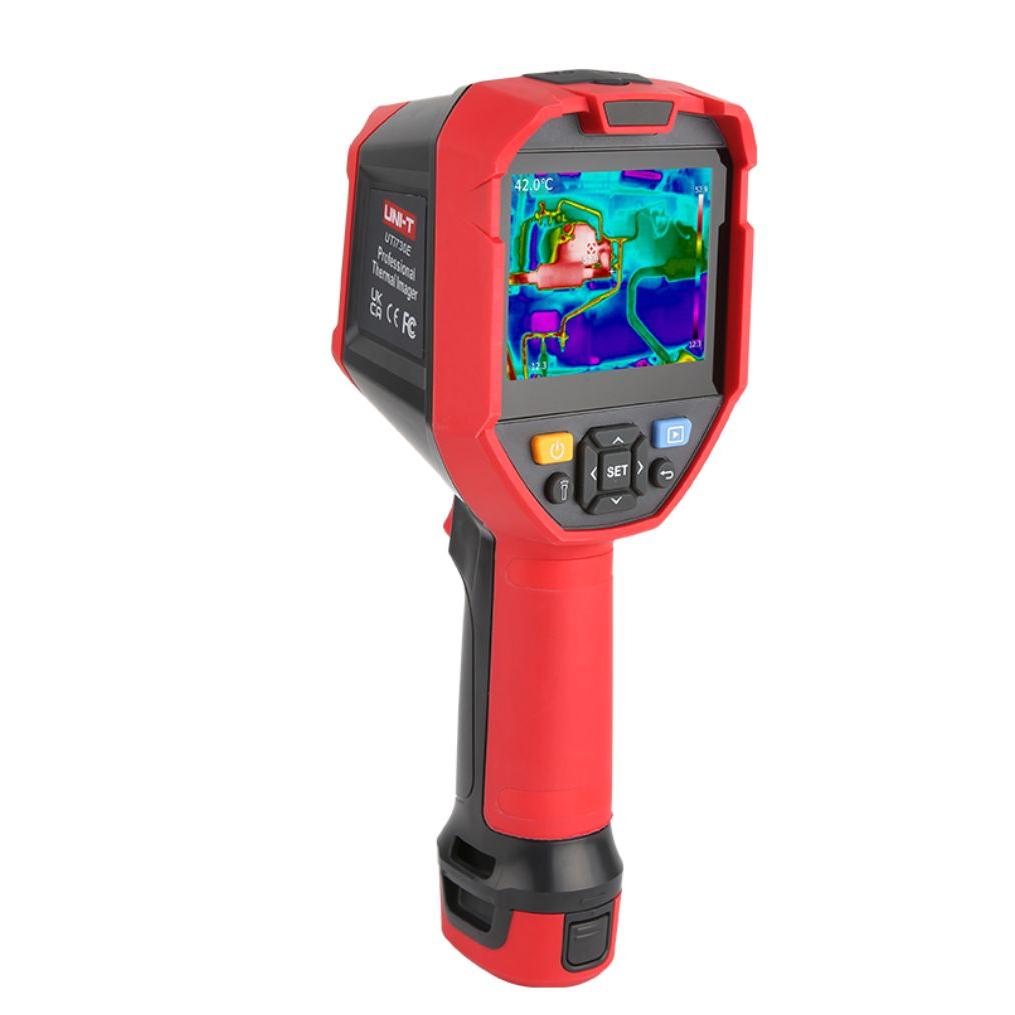

Description
320×240, -40℃~400℃, 56°×42°, 9Hz, 3.5′ IPS touch screen , Laser ranging, 5MP Digital Camera; Video Recording; Wi-Fi
Specifications
Technical Data
Display 3.5″ IPS Touch (640×480)
IR resolution(Pixels) 320×240
Spectral range 8~14µm
Pixel size 12µm
Frame rate ≤9Hz
Thermal sensitivity(NETD) ≤65mK
Focus Focus Free
Field of view(FOV) 56°(H) × 42°(V)
Temperature measurement range -40℃~400℃
Accuracy ±2℃ or ±2% whichever is greater
Functions
Color palettes White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava
Image modes Thermal, Visual image, Fusion (T-Mix), PIP
On screen analyzer 5 Points/1 Line/3 Rectangles/3 Circles
Isotherm Auto/Manual
Hi/Lo temperature alarm LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking √
Digital camera resolution 5MP
Digital zoom 2x, 4x
Video recording √
Voice recording √
Wi-Fi √
Wi-Fi live streaming √
LED lighting √
Laser pointer √
Laser distance measurement √
Analysis software PC+APP
General Characteristics
Battery 5200mAh detachable Li-ion battery pack (UT-M17)
Operating time ≥4 hours (with Wi-Fi off)
USB Type-C
Storage 32GB Micro SD card
Image storage format JPG
Video storage format AVI
Protection IP54 & 2m drop proof
Certificates CE, UKCA, FCC, RoHS
Languages EN, FR, DE, IT, ES, SV, PL, CZ
Weight 654g
Dimension 260mm×97mm×99mm
Packing Details
Standard accessories Type-C USB cable, Micro SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide
Standard individual packing Toolbox & Gift box
Standard Qty per carton 1pcs
Standard carton size 400mm×185mm×345mm
Standard carton G.W. 4kg
